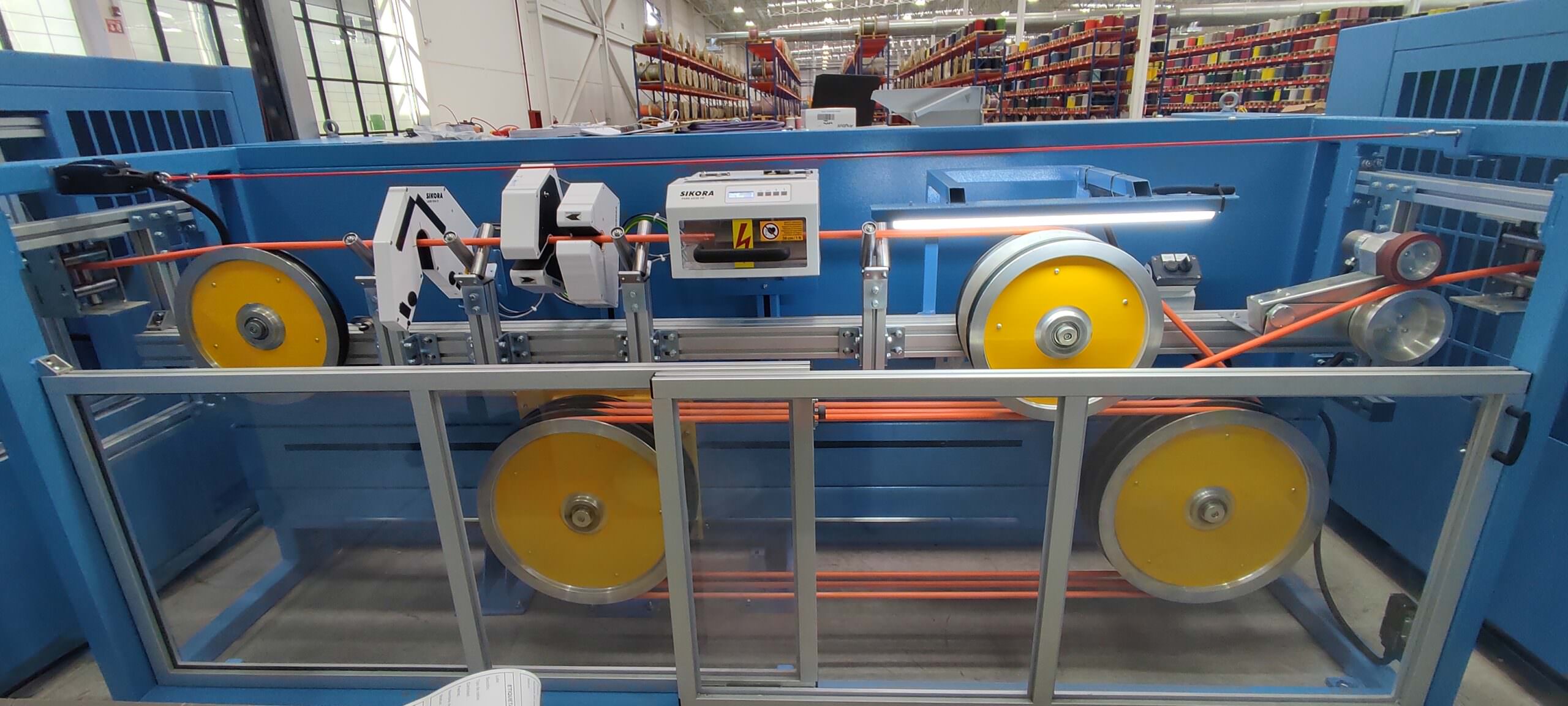

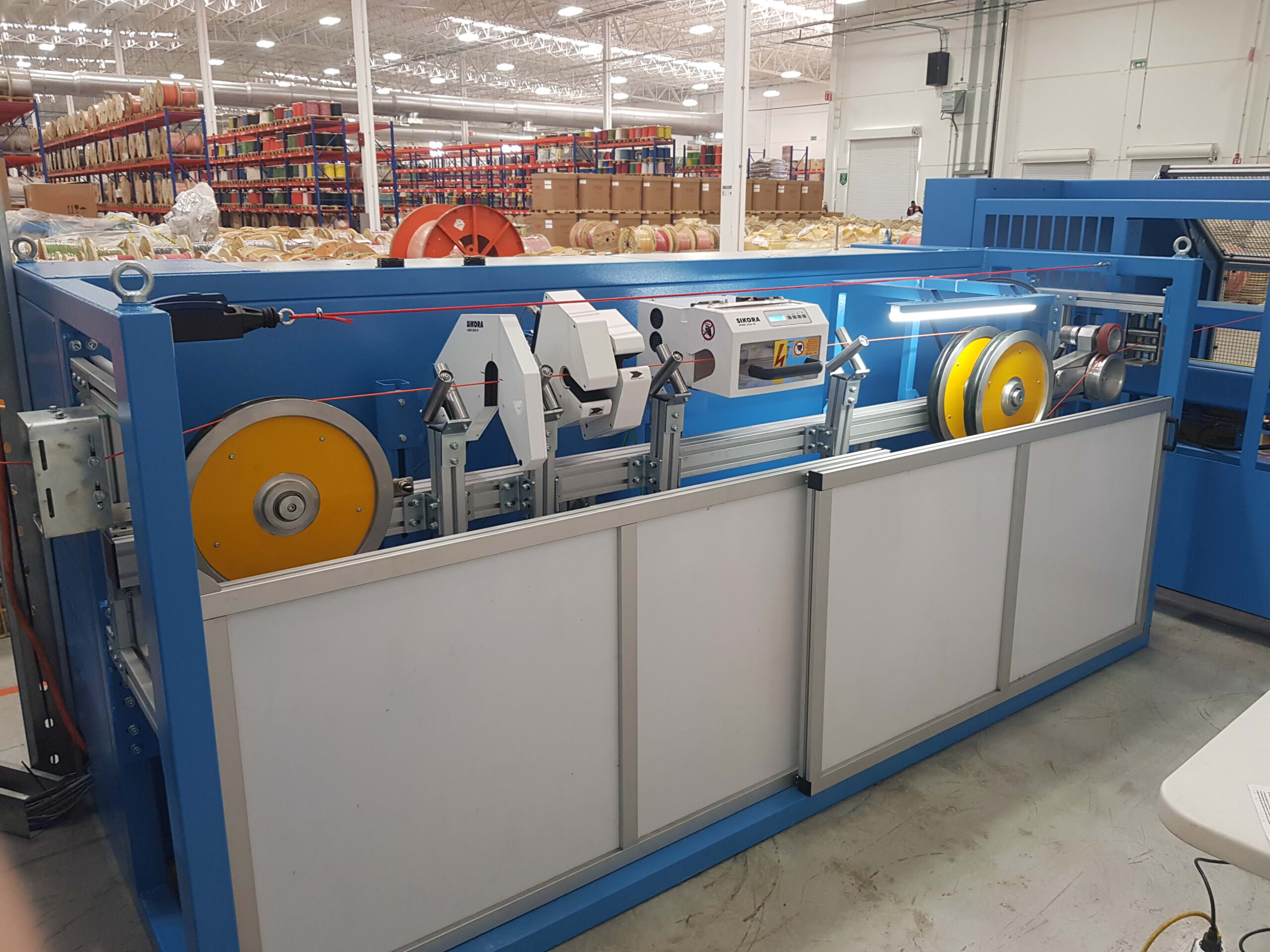

This fully electric dancer is employed to maintain the tension and stability of wires or cables. It incorporates a set of fixed pulleys and horizontally guided movable pulleys, providing adjustable tension control. The system is enclosed in a secure structure with a safety-locking door and features software detection of upper and lower limits to ensure safety, precision, and stability.
An electric motor is used to provide the required horizontal torque to reach the tension setpoint.
| Parameter | Value |
|---|---|
| EXTERNAL DIAMETER [mm] | 300 |
| NUMBER OF PULLEYS | 4 fixed 3 movable |
| WIRE/CABLE MAXIMUM DIAMETER [mm] | 15 |
| MAXIMUM DISPLACEMENT [mm] | 1400 |
| CAPACITY LENGTH [mm] | 11710 |
| ACUMULATION LENGTH [mm] | 7000 |

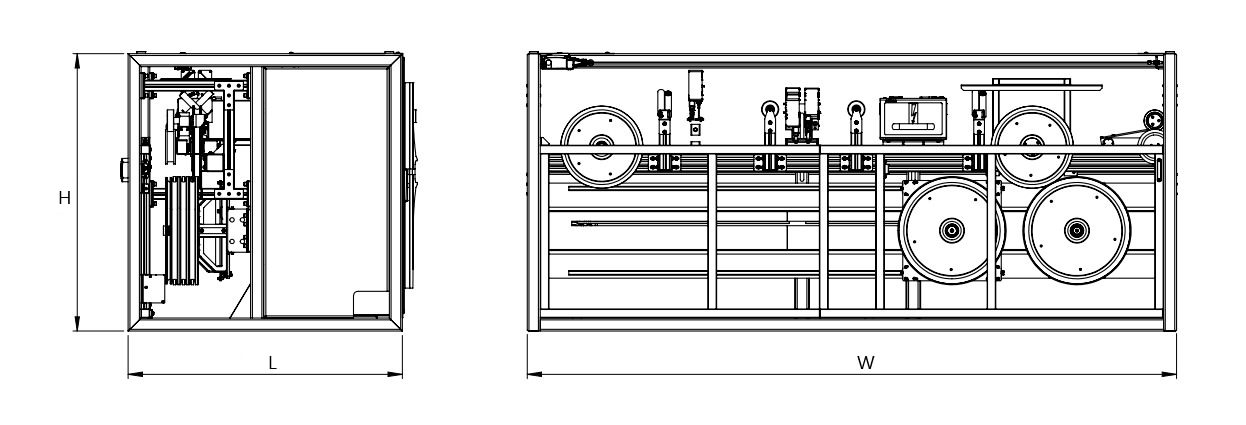

| MACHINE DIMENSIONS (L x W x H) [m] | 1,3 x 3,0 x 1,3 |
| Parameter | Value |
|---|---|
| EXTERNAL DIAMETER [mm] | 500 |
| NUMBER OF PULLEYS | 4 fixed 3 movable |
| WIRE/CABLE MAXIMUM DIAMETER [mm] | 25 |
| MAXIMUM DISPLACEMENT [mm] | 1400 |
| CAPACITY LENGTH [mm] | 14850 |
| ACUMULATION LENGTH [mm] | 7000 |
| MACHINE DIMENSIONS (L x W x H) [m] | 1,3 x 3,0 x 1,3 |
| Parameter | Value |
|---|---|
| EXTERNAL DIAMETER [mm] | 600 |
| NUMBER OF PULLEYS | 4 fixed 3 movable |
| WIRE/CABLE MAXIMUM DIAMETER [mm] | 35 |
| MAXIMUM DISPLACEMENT [mm] | 1400 |
| CAPACITY LENGTH [mm] | 14850 |
| ACUMULATION LENGTH [mm] | 7000 |
| MACHINE DIMENSIONS (L x W x H) [m] | 1,3 x 4,0 x 1,5 |
| Parameter | Value |
|---|---|
| EXTERNAL DIAMETER [mm] | 800 |
| NUMBER OF PULLEYS | 4 fixed 3 movable |
| WIRE/CABLE MAXIMUM DIAMETER [mm] | 45 |
| MAXIMUM DISPLACEMENT [mm] | 2000 |
| CAPACITY LENGTH [mm] | 19500 |
| ACUMULATION LENGTH [mm] | 7200 |
| MACHINE DIMENSIONS (L x W x H) [m] | 1,4 x 5,0 x 1,9 |
